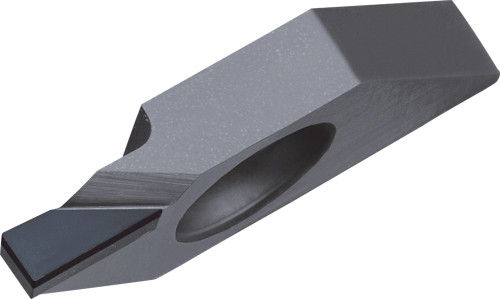

Kyocera TKF 16R250AS KPD001 Grade PCD, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR16046
$389.83
Kyocera TKF 16R250AS KPD001 Grade PCD, 2.50mm Groove Width, Right-Hand Grooving Insert for Continuous and Finishing in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy

Specifications

Series
KTKF
Unit of Measure
Metric
Material
PCD
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius (Metric)
0.10
Grade
KPD001
Cutting Width
2.50 mm
Thickness (Metric)
9.50
Cutting Width (Decimal)
0.10
Style
TKF
Application
Small Parts Machining|Traversing
Chip Breaker Type
AS
Thickness (Decimal)
0.37
Insert Holding Method
Screw
Size
16
Old Material Number
8863052
ANSI Part Number
TKF16R250ASKPD001
ISO Part Number
TKF16R250-AS
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Right
Cutting Range
Finishing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.004
Cutting Width Minimum (Decimal)
0.10
Cutting Width Minimum (Metric)
2.50
Cutting Width Maximum (Decimal)
0.10
Cutting Width Maximum (Metric)
2.50
Max Depth of Cut (Decimal)
0.32
Max Depth of Cut (Metric)
8
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
