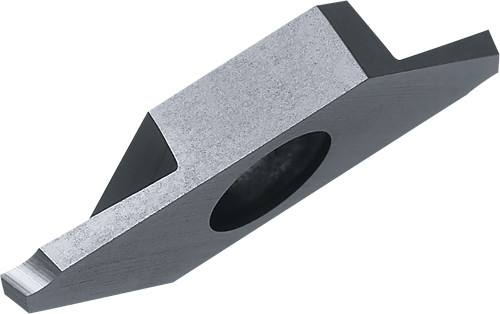

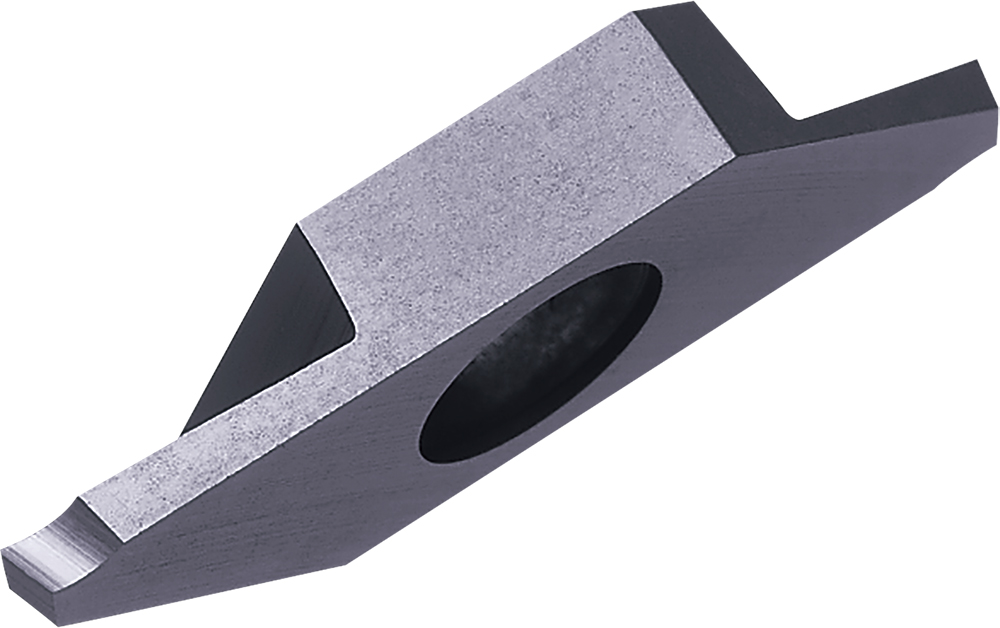

Kyocera TKF 16R150T16DR PR1725 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM40144
$81.59
Kyocera TKF 16R150T16DR PR1725 Grade PVD Carbide, 0.0591" Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KTKF
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Primary Workpiece Material
(P) Steel
Cutting Width
1.50 mm
Application
Cut-Off, Small Parts Machining
Insert Holding Method
Screw
Old Material Number
8865381
ANSI Part Number
TKF16R150T16DRPR1725
ISO Part Number
TKF16R150-T-16DR
Rake
Positive
Material Group / Grade
PR1725
Tool Style
TKF
Max Depth of Cut (Decimal)
0.32
Max Depth of Cut (Metric)
8
Cutting Width (Decimal)
0.06
Cutting Width (Metric)
1.50
Cutting Width Minimum (Decimal)
0.06
Cutting Width Minimum (Metric)
1.50
Cutting Width Maximum (Decimal)
0.06
Cutting Width Maximum (Metric)
1.50
Corner Radius (Metric)
0.08
Number of Cutting Edges
2
Insert Size
16
Corner Radius (Decimal)
0.003
Thickness (Decimal)
0.37
Thickness (Metric)
9.50
Chipbreaker
T
Coating Process
PVD
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
