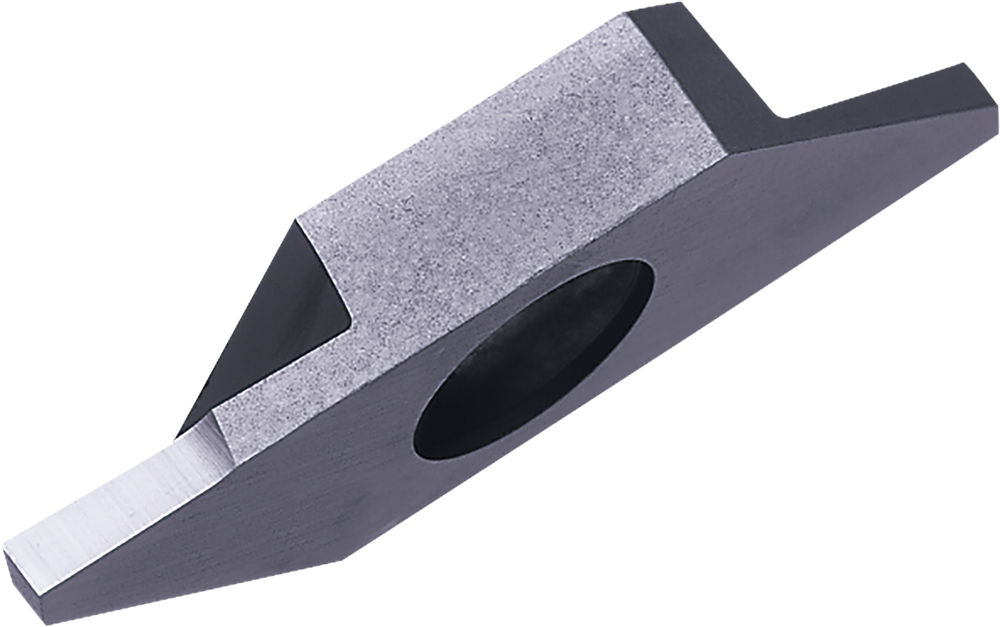

Kyocera TKF 16R200NB PR1725 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM40145
$81.59
Kyocera TKF 16R200NB PR1725 Grade PVD Carbide, 0.0787" Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KTKF
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Primary Workpiece Material
(P) Steel
Cutting Width
2 mm
Application
Cut-Off, Small Parts Machining
Insert Holding Method
Screw
Old Material Number
8865378
ANSI Part Number
TKF16R200NBPR1725
ISO Part Number
TKF16R200-NB
Rake
Positive
Material Group / Grade
PR1725
Tool Style
TKF
Max Depth of Cut (Decimal)
0.32
Max Depth of Cut (Metric)
8
Cutting Width (Decimal)
0.08
Cutting Width (Metric)
2
Cutting Width Minimum (Decimal)
0.08
Cutting Width Minimum (Metric)
2
Cutting Width Maximum (Decimal)
0.08
Cutting Width Maximum (Metric)
2
Number of Cutting Edges
2
Insert Size
16
Thickness (Decimal)
0.37
Thickness (Metric)
9.50
Chipbreaker
NB
Coating Process
PVD
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
