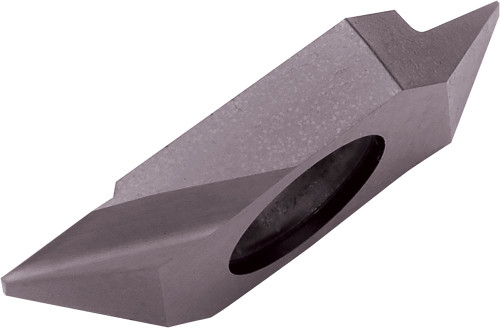

Kyocera TKFB 12R15005M PR1225 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE16530
$72.51
Kyocera TKFB 12R15005M PR1225 Grade PVD Carbide, Triangle, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Medium-Roughing in (M) Stainless Steel and (P) Carbon/Alloy Steel

Specifications

Series
KTKF
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Corner Radius
0.002 Inch
Thickness
0.12 Inch
Style
TKFB
Application
Back Turning
Shape
Irregular
Insert Holding Method
Screw
Size
12
Old Material Number
8835419
ANSI Part Number
TKFB12R15005MPR1225
ISO Part Number
TKFB12R15005M
Rake
Positive
Material Group / Grade
PR1225
Cutting Width (Decimal)
0.06
Cutting Width (Metric)
1.50
Cutting Width Minimum (Decimal)
0.06
Cutting Width Minimum (Metric)
1.50
Cutting Width Maximum (Decimal)
0.06
Cutting Width Maximum (Metric)
1.50
Corner Radius (Metric)
0.05
Number of Cutting Edges
2
Thickness (Metric)
3
Cutting Range
Medium-Roughing
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
Kyocera TKFB 12R15005M PR1225 Grade PVD Carbide, Indexable Turning Insert
$72.51
