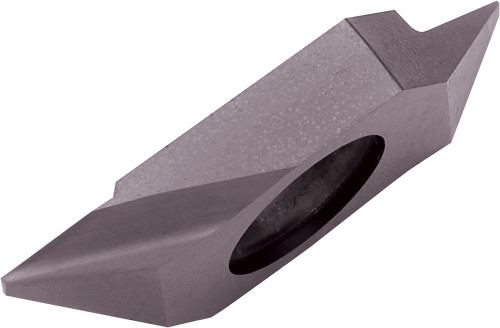

Kyocera TKFB 12R15005M PR1535 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC16530
$72.51
Kyocera TKFB 12R15005M PR1535 Grade PVD Carbide, Triangle, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel

Specifications

Series
KTKF
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Corner Radius
0.002 Inch
Thickness
0.12 Inch
Style
TKFB
Application
Back Turning
Shape
Irregular
Insert Holding Method
Screw
Size
12
Old Material Number
8844709
ANSI Part Number
TKFB12R15005MPR1535
ISO Part Number
TKFB12R15005M
Rake
Positive
Material Group / Grade
PR1535
Cutting Width (Decimal)
0.06
Cutting Width (Metric)
1.50
Cutting Width Minimum (Decimal)
0.06
Cutting Width Minimum (Metric)
1.50
Cutting Width Maximum (Decimal)
0.06
Cutting Width Maximum (Metric)
1.50
Corner Radius (Metric)
0.05
Number of Cutting Edges
2
Thickness (Metric)
3
Cutting Range
Medium-Roughing
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1535_for_Turning.pdf
