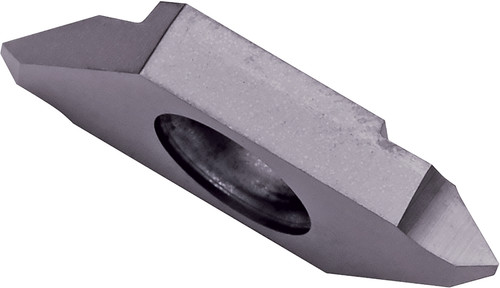

Kyocera TKFT 12LB55005 PR1535 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC16589
$71.13
Kyocera TKFT 12LB55005 PR1535 Grade PVD Carbide, External, 55 Degree Partial Profile, Right-Hand Threading Insert for Parallel Pipe [G(PF)], Tapered Pipe [R(PT), (BSPT)], Whitworth (W) Threads

Specifications

Series
KTKF
Unit of Measure
Imperial
Cutting Direction
Left
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Grade
PR1535
Thickness
0.34 Inch
Style
TKFT
Application
External Threading
Thread Standard
Parallel Pipe [G(PF)]|Tapered Pipe [R(PT), (BSPT)]|Whitworth (W)
Insert Holding Method
Screw
Thread Type
External
Size
12
Old Material Number
8844733
ANSI Part Number
TKFT12LB55005PR1535
ISO Part Number
TKFT12LB55005
Cutting Width (Decimal)
0.10
Cutting Width (Metric)
2.50
Cutting Width Minimum (Decimal)
0.10
Cutting Width Minimum (Metric)
2.50
Cutting Width Maximum (Decimal)
0.10
Cutting Width Maximum (Metric)
2.50
Corner Radius (Metric)
0.05
Number of Cutting Edges
2
Corner Radius (Decimal)
0.002
Thickness (Metric)
8.70
Usage Classification
Continuous
Thread Profile Type
55 Degree Partial Profile
Thread Pitch (TPI)
G(PF), R(PT), W: 40-16
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
