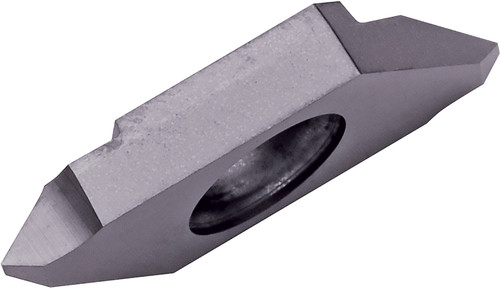

Kyocera TKFT 12RN6001 PR1535 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC16580
$71.13
Kyocera TKFT 12RN6001 PR1535 Grade PVD Carbide, External, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads

Specifications

Series
KTKF
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Grade
PR1535
Thickness
0.34 Inch
Style
TKFT
Application
External Threading
Thread Standard
Metric (M)|Unified (UN)
Insert Holding Method
Screw
Thread Type
External
Size
12
Old Material Number
8844743
ANSI Part Number
TKFT12RN6001PR1535
ISO Part Number
TKFT12RN6001
Cutting Width (Decimal)
0.10
Cutting Width (Metric)
2.50
Cutting Width Minimum (Decimal)
0.10
Cutting Width Minimum (Metric)
2.50
Cutting Width Maximum (Decimal)
0.10
Cutting Width Maximum (Metric)
2.50
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Corner Radius (Decimal)
0.004
Usage Classification
Continuous
Thread Profile Type
60 Degree Partial Profile
Thread Pitch (TPI)
UN: 24-18
Thread Pitch (mm)
M: 1.00-1.50
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
