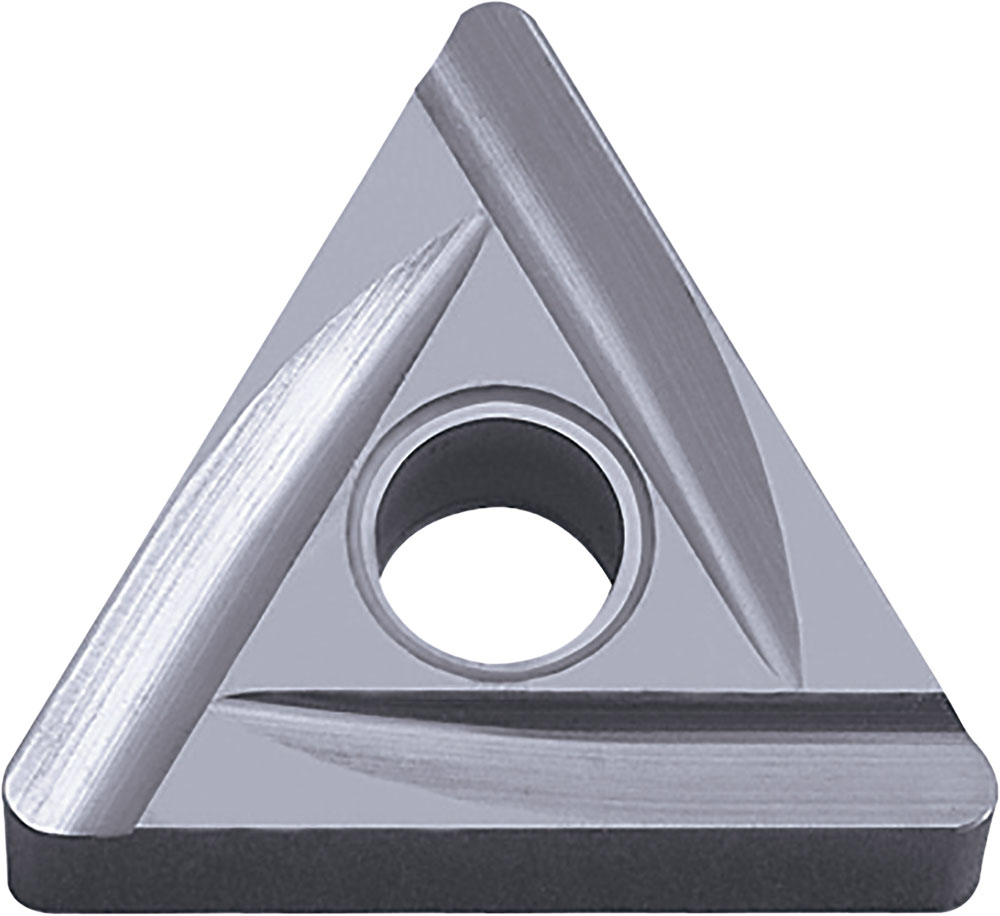

Kyocera TNGG 331RS PR930 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT03213
$32.62
Kyocera TNGG 331RS PR930 Grade PVD Carbide, 0 Degree, Triangle, Negative Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
60 degrees
Thickness
3/16 Inch
Style
TNGG
Application
Boring, Chamfering, Copying, External Turning, Facing, Up Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
331
Old Material Number
8807364
ANSI Part Number
TNGG331RSPR930
ISO Part Number
TNGG160404R-S
Rake
Negative
Material Group / Grade
PR930
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
S
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
