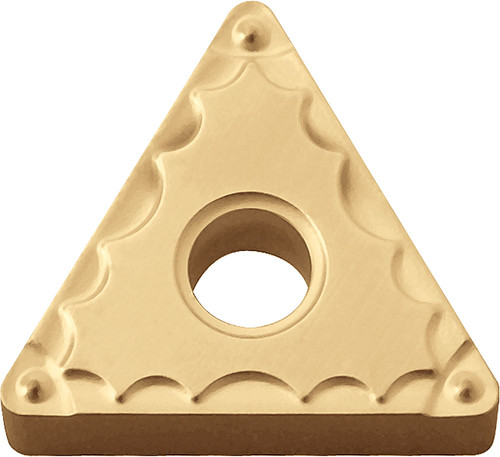

Kyocera TNMG 3305GP CA510 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAA06150
$16.17
Kyocera TNMG 3305GP CA510 Grade CVD Carbide, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
60 degrees
Thickness
3/16 Inch
Style
TNMG
Application
Boring, Chamfering, Copying, External Turning, Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
3305
Old Material Number
8841003
ANSI Part Number
TNMG3305GPCA510
ISO Part Number
TNMG160402GP
Rake
Negative
Material Group / Grade
CA510
Corner Radius (Metric)
0.20
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
GP
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
