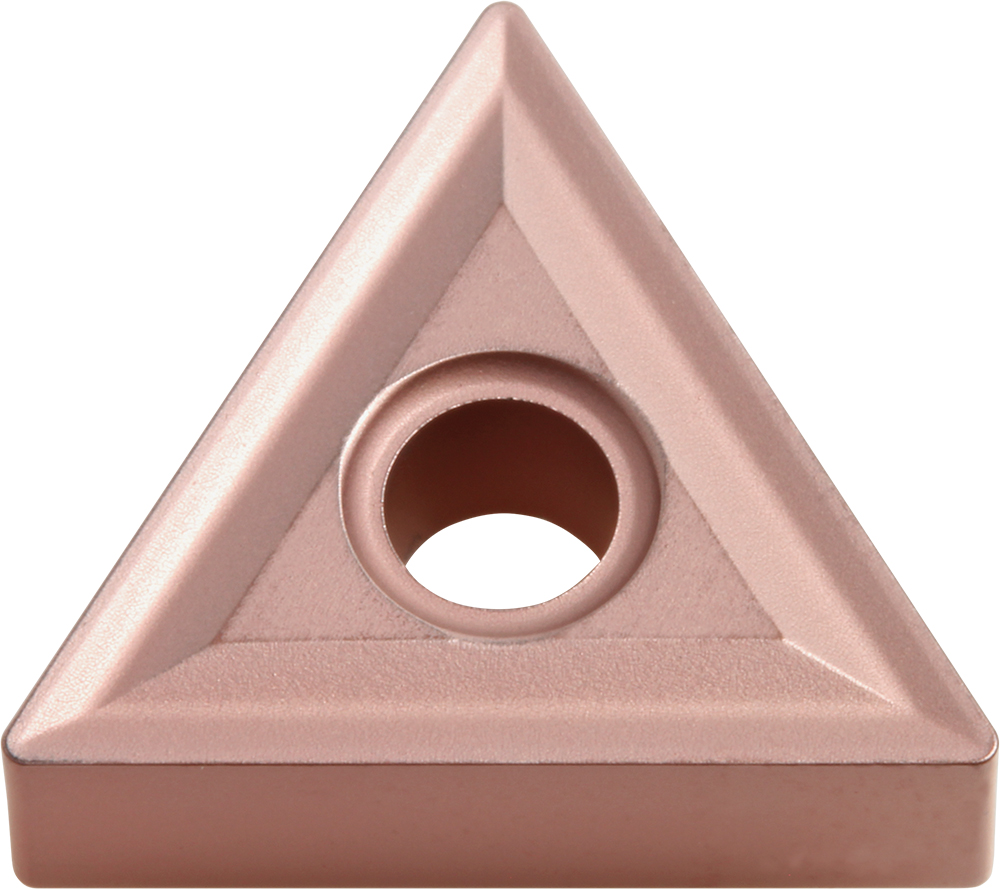

Kyocera Turning Insert TNMG333C CA310: TMC06107

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC06107
$16.17

Kyocera Turning Insert TNMG333C CA310, manufacturer part number TMC06107.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8848366; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Medium-Roughing; Usage Classification: Continuous; Insert Size: 333; Hand Direction: Neutral; Insert Style: TNMG; ANSI Designation: TNMG333CCA310; Chip Breaker Type: C; ISO Designation: TNMG160412C; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: CA310; Workpiece Material: Cast Iron; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/Ti. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
3/64
Included Angle
60
ANSI Designation
TNMG333CCA310
Insert Style
TNMG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
333
Old Material Number
8848366
Insert Grade
CA310
Workpiece Material
Cast Iron
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
1.20
Number of Cutting Edges
6
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
C
ISO Designation
TNMG160412C
Pack quantity
10
