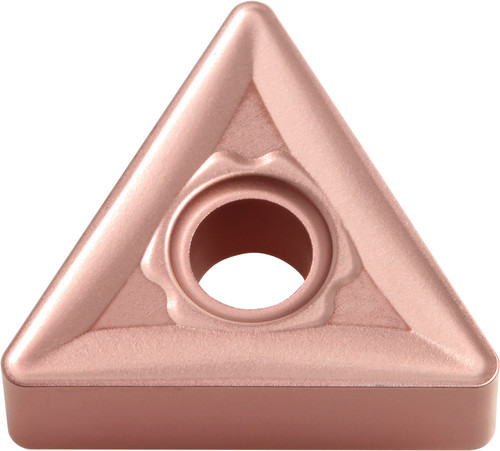

Kyocera Turning Insert TNMG333C CA315: TMD06107

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMD06107
$16.17

Kyocera ISOI turning insert for cast iron, 3/8 in (9.525 mm) IC, triangle shape, negative rake, 6 cutting edges, medium-roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TMD06107.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
3/64
Included Angle
60
ANSI Designation
TNMG333CCA315
Insert Style
TNMG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
333
Insert Grade
CA315
Workpiece Material
Cast Iron
Rake
Negative
Insert Thickness (Metric)
4.76
Corner Radius (Metric)
1.20
Number of Cutting Edges
6
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
C
ISO Designation
TNMG160412C
Pack quantity
10
