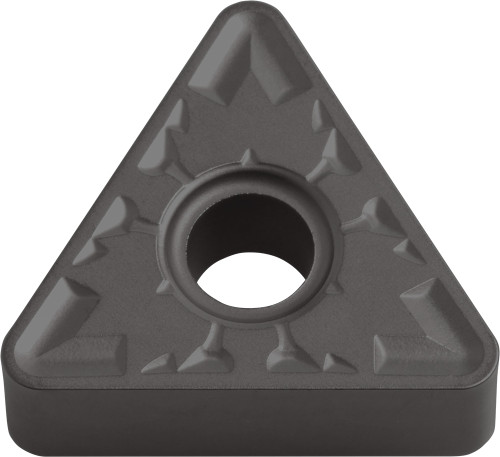

Kyocera TNMG 333ZS CA4515 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJH06351
$16.17
Kyocera TNMG 333ZS CA4515 Grade CVD Carbide, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Heavy Interruption and Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
3/64 Inch
Included Angle
60 degrees
Thickness
3/16 Inch
Style
TNMG
Application
Boring, Chamfering, Copying, External Turning, Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
333
Old Material Number
8831422
ANSI Part Number
TNMG333ZSCA4515
ISO Part Number
TNMG160412ZS
Rake
Negative
Material Group / Grade
CA4515
Corner Radius (Metric)
1.20
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
ZS
Cutting Range
Roughing
Usage Classification
Heavy Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
