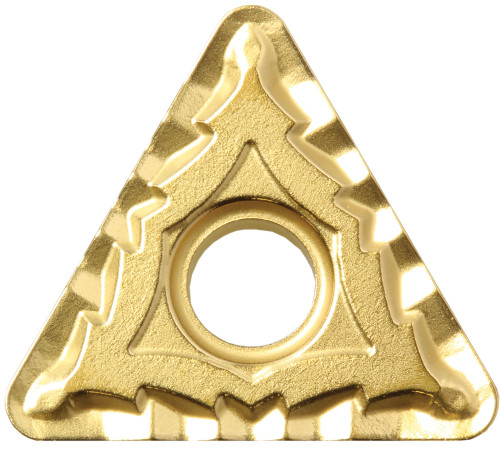

Kyocera Turning Insert TNMG432CQ CA515: TAB06416

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB06416
$19.81

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, triangle shape, negative rake, 6 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAB06416.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TNMG432CQCA515
Insert Style
TNMG
Insert Thickness (Metric)
4.76
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
432
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Grade
CA515
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Workpiece Material
Steel
ISO Designation
TNMG220408CQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
CQ
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
