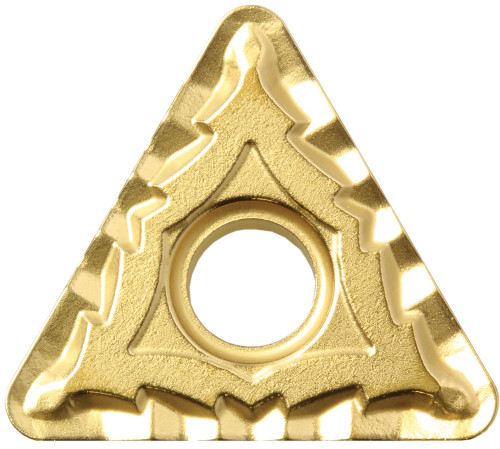

Kyocera Turning Insert TNMG432CQ CA525: TAC06416

Kyocera Turning Insert TNMG432CQ CA525, manufacturer part number TAC06416.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8840389; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 432; Hand Direction: Neutral; Insert Style: TNMG; ANSI Designation: TNMG432CQCA525; Chip Breaker Type: CQ; ISO Designation: TNMG220408CQ; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: CA525; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
