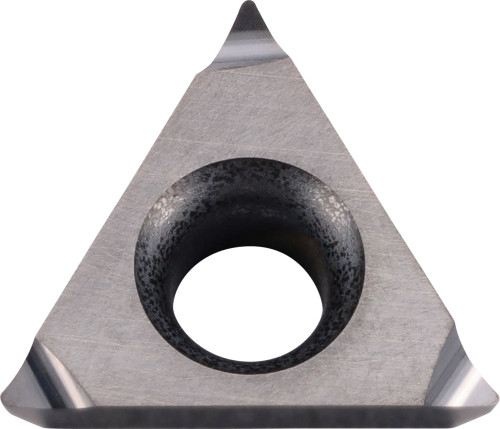

Kyocera Turning Insert TPEH18151MRP PR1535: TLC58721

Kyocera Turning Insert TPEH18151MRP PR1535, manufacturer part number TLC58721.

Specifications: IC Size: 7/32 in (5.56 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8861021; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 18151; Hand Direction: Right; Insert Style: TPEH; ANSI Designation: TPEH18151MRPPR1535; Chip Breaker Type: P; ISO Designation: TPEH090204MR-P; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: PR1535; Workpiece Material: Stainless Steel, High-Temp Alloy; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO. Series: ISOI. Unit of measure: Inch.
