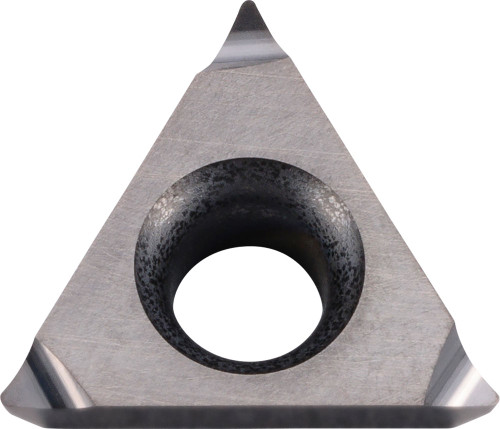

Kyocera TPEH 18151MRP PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00477
$33.28
Kyocera TPEH 18151MRP PR1725 Grade PVD Carbide, 11 Degree, Triangle, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
60 degrees
Thickness
3/32 Inch
Style
TPEH
Application
Back Boring, Boring, Copying, External Turning, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
18151
Old Material Number
8863724
ANSI Part Number
TPEH18151MRPPR1725
ISO Part Number
TPEH090204MR-P
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Thickness (Metric)
2.38
Chipbreaker
P
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
5.56
Inscribed Circle
7/32 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/P_Chipbreaker_for_Boring.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
