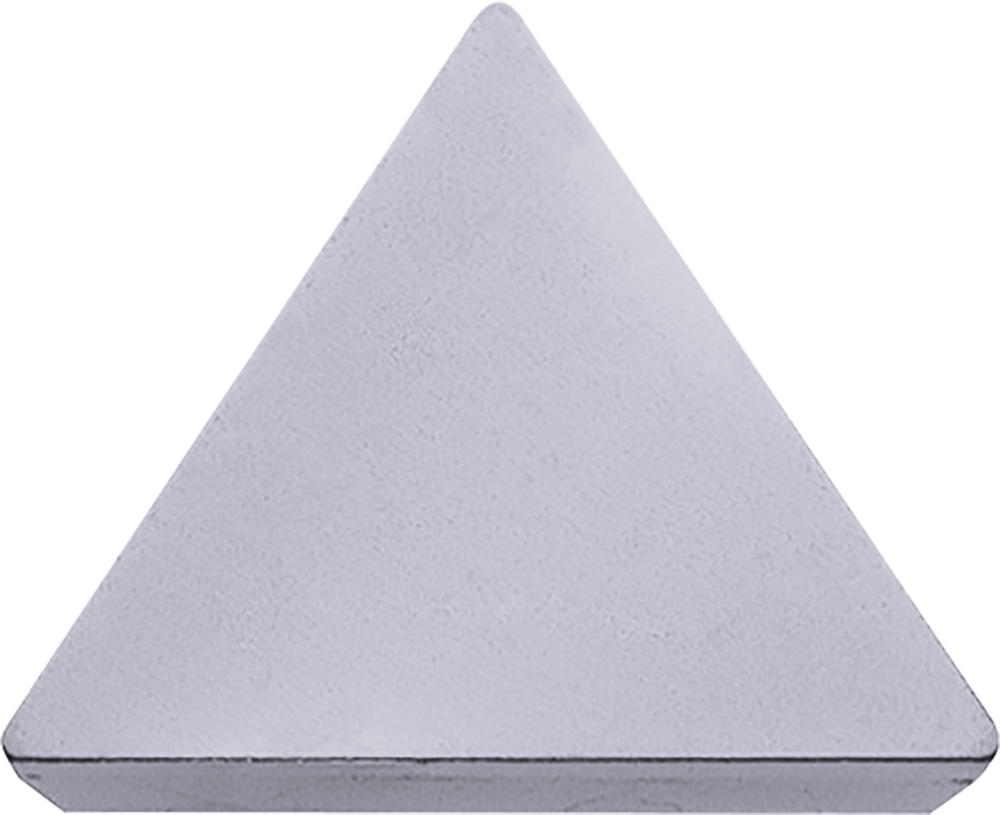

Kyocera TPG 322 TN100M Grade Uncoated Cermet, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSP89034
$18.94
Kyocera TPG 322 TN100M Grade Uncoated Cermet, 11 Degree Triangle, Positive Rake Angle, Neutral Milling Insert for Finishing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel

Specifications

Series
GPM
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
TN100M
Inscribed Circle (Metric)
9.53
Thickness
3.18 mm
Style
TPG
Application
Boring, Chamfering, External Turning, Facing
Thickness (Fractional)
1/8
Shape
60 Degree Triangle
Insert Holding Method
Clamp
Old Material Number
8849755
ANSI Part Number
TPG322TN100M
ISO Part Number
TPG322
Rake
Positive
Number of Cutting Edges
3
Insert Size
322
Cutting Range
Finishing
Inscribed Circle (Fractional)
3/8
Insert Included Angle (Degree)
60 degrees
Pack quantity
10
Kyocera TPG 322 TN100M Grade Uncoated Cermet, Indexable Milling Insert
$18.94
