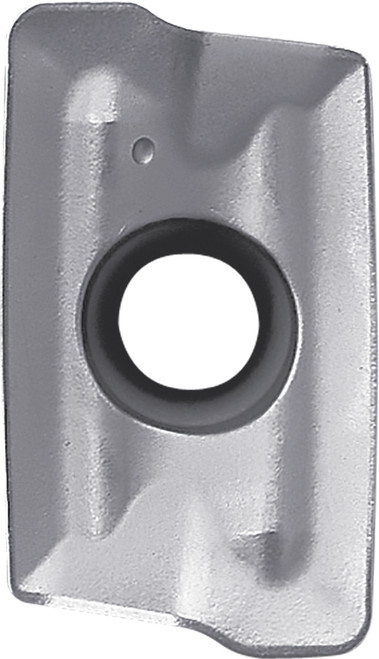

Kyocera BDMT 11T308ERJT TN100M Grade Uncoated Cermet, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSP01003
$26.51
Kyocera BDMT 11T308ERJT TN100M Grade Uncoated Cermet, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Finishing in (P) Carbon/Alloy Steel, (P) Mold Steel

Specifications

Series
MEC
Unit of Measure
Metric
Cutting Direction
Right
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
TN100M
Thickness
3.80 mm
Style
BDMT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.15
Shape
Parallelogram
Insert Holding Method
Screw
Old Material Number
8835238
ANSI Part Number
BDMT11T308ERJTTN100M
ISO Part Number
BDMT11T308ER-JT
Rake
Positive
Number of Cutting Edges
2
Insert Size
11T308
Chipbreaker
ER-JT
Cutting Range
Finishing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
