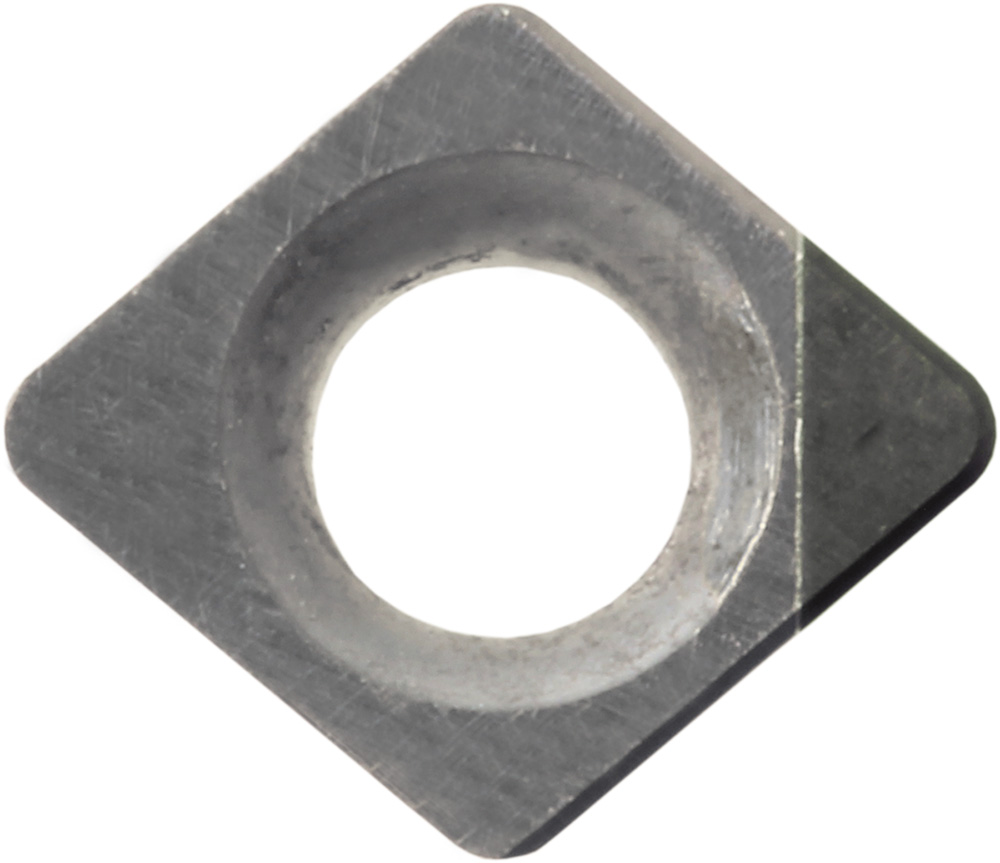

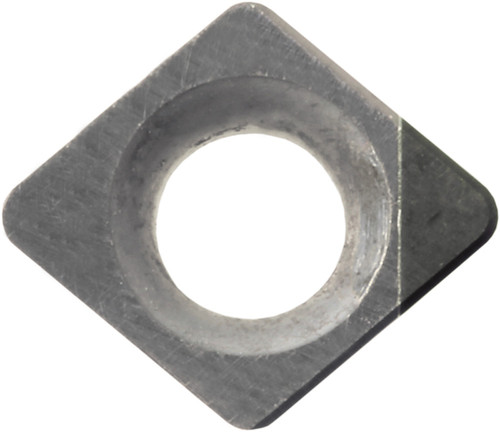

Kyocera Turning Insert CCMW2151T00315SE KBN25M: TBZ01291

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBZ01291
$67.68

Kyocera ISOI turning insert for hardened steel, 1/4 in (6.35 mm) IC, 80 degree diamond shape, positive rake, 1 cutting edge, medium cutting range, screw or clamp insert holding, neutral hand. CBN, MEGACOAT (PVD) coating. Manufacturer part number TBZ01291.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CCMW2151T00315SEKBN25M
Insert Style
CCMW
Insert Thickness (Metric)
2.38
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
2151
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
KBN25M
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
1
Workpiece Material
Hardened Steel
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
PVD
ISO Designation
CCMW060204T00815SE
