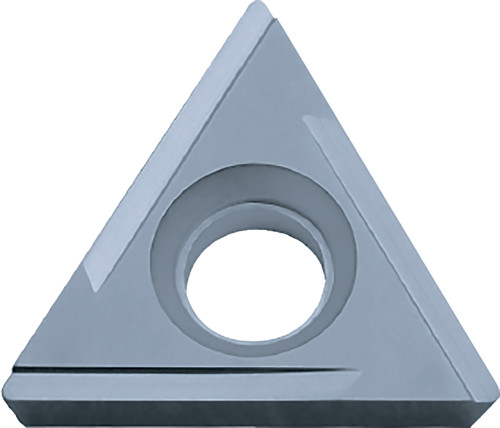

Kyocera Turning Insert TPGH321RH PR930: TKT03757

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT03757
$40.96

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, triangle shape, positive rake, 3 cutting edges, medium cutting range, screw or clamp insert holding, right hand. Carbide, TiCN (PVD) coating. Manufacturer part number TKT03757.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
TiCN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPGH321RHPR930
Insert Style
TPGH
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
321
Secondary Workpiece Material
Stainless Steel
Insert Grade
PR930
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Coating Process
PVD
IC Size (Fractional)
3/8
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
H
ISO Designation
TPGH160304R-H
Pack quantity
10
Kyocera Turning Insert TPGH321RH PR930: TKT03757
$40.96
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
