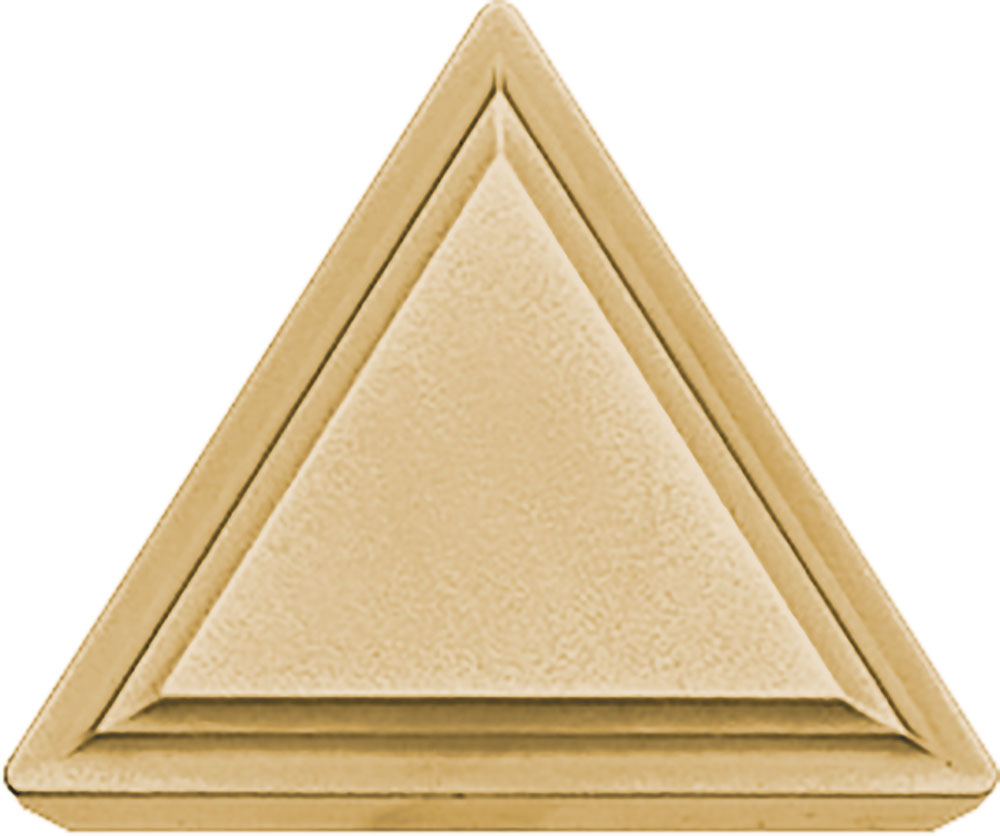

Kyocera Turning Insert TPMR222 CA115P: TML00432

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00432
$14.81

Kyocera Turning Insert TPMR222 CA115P, manufacturer part number TML00432.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Clamp; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 222; Hand Direction: Neutral; Insert Style: TPMR; ANSI Designation: TPMR222CA115P; ISO Designation: TPMR110308; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: CA115P; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TPMR222CA115P
Insert Style
TPMR
Insert Thickness (Metric)
3.18
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
222
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
CA115P
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Workpiece Material
Steel
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
CVD
ISO Designation
TPMR110308
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
