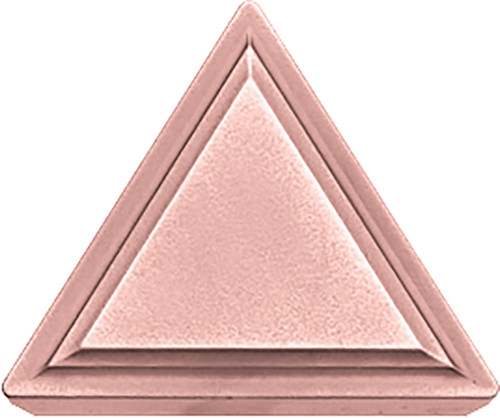

Kyocera Turning Insert TPMR222 CA320: TME06701

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TME06701
$15.28

Kyocera Turning Insert TPMR222 CA320, manufacturer part number TME06701.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Clamp; Old Material Number: 8848884; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium; Usage Classification: Continuous to Heavy Interruption; Insert Size: 222; Hand Direction: Neutral; Insert Style: TPMR; ANSI Designation: TPMR222CA320; ISO Designation: TPMR110308; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: CA320; Workpiece Material: Cast Iron; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/Ti. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TPMR222CA320
Insert Style
TPMR
Insert Thickness (Metric)
3.18
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
222
Old Material Number
8848884
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
CA320
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Workpiece Material
Cast Iron
Cutting Range
Medium
Usage Classification
Continuous to Heavy Interruption
IC Size (Fractional)
1/4
Coating Process
CVD
ISO Designation
TPMR110308
Pack quantity
10
