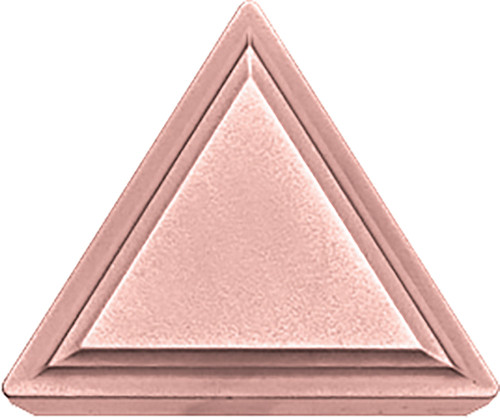

Kyocera Turning Insert TPMR321 CA310: TMC06770

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC06770
$17.64

Kyocera ISOI turning insert for cast iron, 3/8 in (9.525 mm) IC, triangle shape, positive rake, 3 cutting edges, medium cutting range, clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TMC06770.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMR321CA310
Insert Style
TPMR
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
321
Insert Grade
CA310
Workpiece Material
Cast Iron
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Coating Process
CVD
Cutting Range
Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
TPMR160304
IC Size (Fractional)
3/8
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA3-Series_W.pdf
