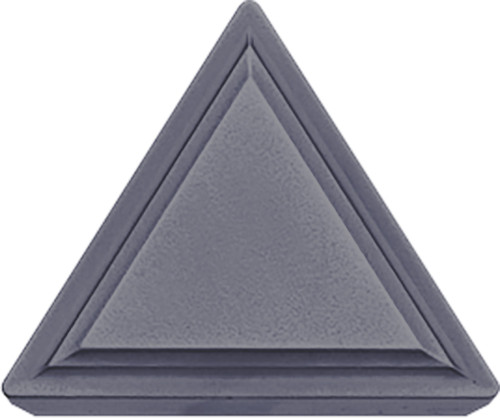

Kyocera Turning Insert TPMR321 PV7005: TJA07245

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJA07245
$18.68

Kyocera Turning Insert TPMR321 PV7005, manufacturer part number TJA07245.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Clamp; Old Material Number: 8827568; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium; Usage Classification: Continuous; Insert Size: 321; Hand Direction: Neutral; Insert Style: TPMR; ANSI Designation: TPMR321PV7005; ISO Designation: TPMR160304; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: PV7005; Workpiece Material: Cast Iron; Insert Shape: Triangle; Coating Process: PVD.

Material: Cermet. Coating/Finish: TiC/TiN (MEGACOAT). Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiC/TiN (MEGACOAT)
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMR321PV7005
Insert Style
TPMR
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
321
Old Material Number
8827568
Insert Grade
PV7005
Workpiece Material
Cast Iron
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Coating Process
PVD
Cutting Range
Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
TPMR160304
IC Size (Fractional)
3/8
Pack quantity
10
Kyocera Turning Insert TPMR321 PV7005: TJA07245
$18.68
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
