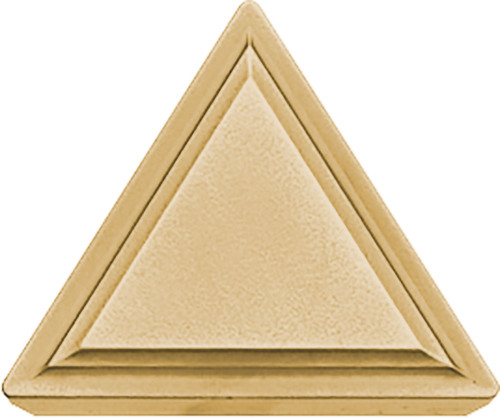

Kyocera Turning Insert TPMR322 CA530: TAD06771

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAD06771
$17.64

Kyocera Turning Insert TPMR322 CA530, manufacturer part number TAD06771.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Clamp; Old Material Number: 8840952; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium; Usage Classification: Continuous to Heavy Interruption; Insert Size: 322; Hand Direction: Neutral; Insert Style: TPMR; ANSI Designation: TPMR322CA530; ISO Designation: TPMR160308; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: CA530; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TPMR322CA530
Insert Style
TPMR
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
322
Old Material Number
8840952
Insert Grade
CA530
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Coating Process
CVD
Cutting Range
Medium
Usage Classification
Continuous to Heavy Interruption
IC Size (Metric)
9.525
ISO Designation
TPMR160308
IC Size (Fractional)
3/8
Pack quantity
10
