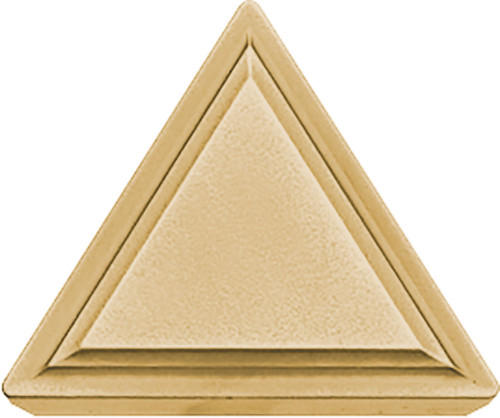

Kyocera Turning Insert TPMR322 PV720: TLD07246

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD07246
$16.81

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, triangle shape, positive rake, 3 cutting edges, medium cutting range, clamp insert holding, neutral hand. Cermet, TiCN (PVD) coating. Manufacturer part number TLD07246.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TPMR322PV720
Insert Style
TPMR
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
322
Insert Grade
PV720
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Coating Process
PVD
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
ISO Designation
TPMR160308
IC Size (Fractional)
3/8
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
