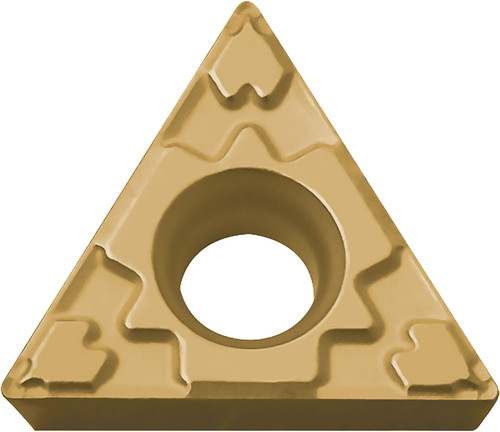

Kyocera Turning Insert TPMT18151GP CA515: TAB06841

Kyocera Turning Insert TPMT18151GP CA515, manufacturer part number TAB06841.

Specifications: IC Size: 7/32 in (5.56 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8841223; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 18151; Hand Direction: Neutral; Insert Style: TPMT; ANSI Designation: TPMT18151GPCA515; Chip Breaker Type: GP; ISO Designation: TPMT090204GP; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: CA515; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
