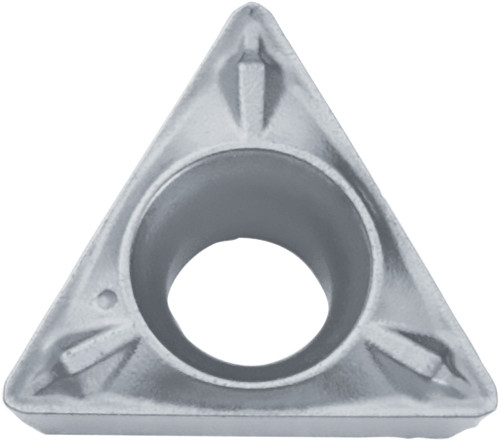

Kyocera Turning Insert TPMX18152WP TN620: TSR07282

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR07282
$12.14

Kyocera ISOI turning insert for steel, 7/32 in (5.56 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Cermet, uncoated. Manufacturer part number TSR07282.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TPMX18152WPTN620
Insert Style
TPMX
Insert Thickness (Metric)
2.38
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
18152
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
TN620
Rake
Positive
IC Size (Metric)
5.56
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
TPMX090208WP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
7/32
Chip Breaker Type
WP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/WP_Chipbreaker.pdf
