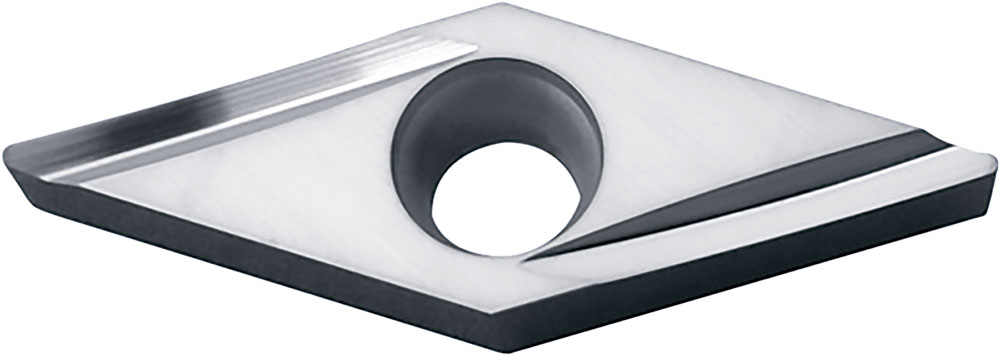

Kyocera VBGT 2205MRY PR1705 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLN40195
$32.26
Kyocera VBGT 2205MRY PR1705 Grade PVD Carbide, 5 Degree, Diamond, Positive Rake Angle, Right-Hand Turning Insert for Continuous and Finishing-Medium in (P) Free-Cutting Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel
Included Angle
35 degrees
Thickness
1/8 Inch
Style
VBGT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2205
Old Material Number
8866445
ANSI Part Number
VBGT2205MRYPR1705
ISO Part Number
VBGT110302MR-Y
Rake
Positive
Material Group / Grade
PR1705
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
3.18
Chipbreaker
Y
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
Kyocera VBGT 2205MRY PR1705 Grade PVD Carbide, Indexable Turning Insert
$32.26
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
