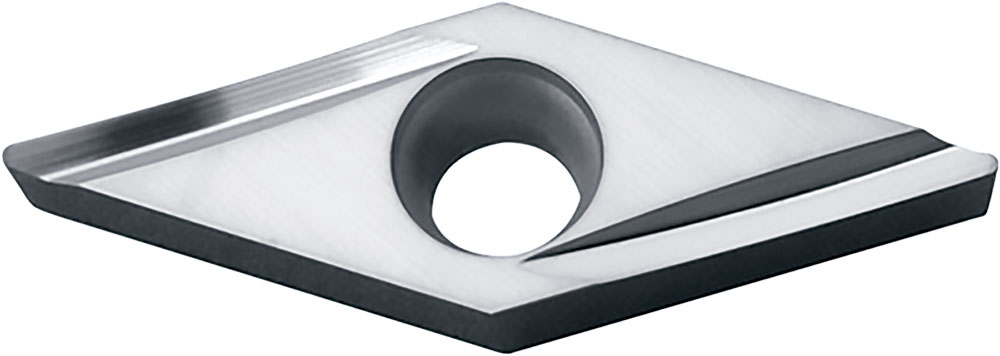

Kyocera Turning Insert VBGT3305LY TN610: TSS07474
SKU: KYP-TSS07474
Kyocera Turning Insert VBGT3305LY PV720, manufacturer part number TLD07474.
Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8862816; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 3305; Hand Direction: Left; Insert Style: VBGT; Insert Shape: 35 Degree Diamond; ANSI Designation: VBGT3305LYPV720; Chip Breaker Type: Y; ISO Designation: VBGT160402L-Y; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: PV720; Workpiece Material: Steel; Coating Process: PVD.
Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.
