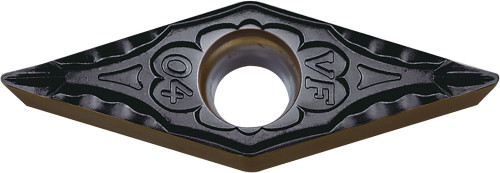

Kyocera Turning Insert VBMT331VF CA115P: TML00448

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00448
$34.78

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 35 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TML00448.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VBMT331VFCA115P
Insert Style
VBMT
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
331
Insert Grade
CA115P
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
VF
ISO Designation
VBMT160404VF
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
