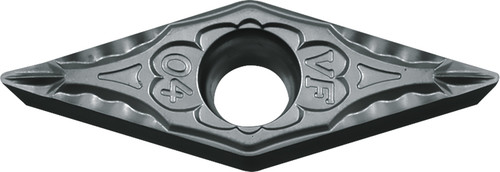

Kyocera Turning Insert VBMT331VF TN610: TSS07586

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS07586
$30.11

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 35 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Cermet, uncoated. Manufacturer part number TSS07586.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VBMT331VFTN610
Insert Style
VBMT
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
331
Insert Grade
TN610
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
VF
ISO Designation
VBMT160404VF
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
