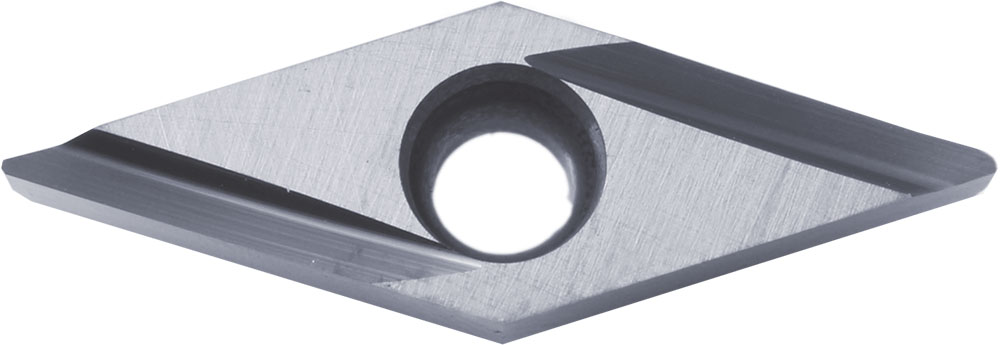

Kyocera VCET 2202MRY PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00456
$32.26
Kyocera VCET 2202MRY PR1725 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
35 degrees
Thickness
1/8 Inch
Style
VCET
Application
Copying, External Turning, Facing, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2202
Old Material Number
8863703
ANSI Part Number
VCET2202MRYPR1725
ISO Part Number
VCET110301MR-Y
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Thickness (Metric)
3.18
Chipbreaker
Y
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
