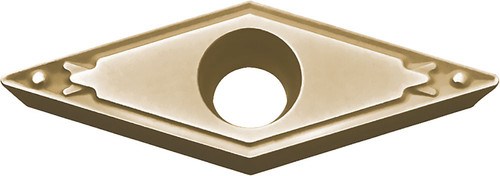

Kyocera Turning Insert VCMT151505HQ CA525: TAC07500

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC07500
$25.49

Kyocera ISOI turning insert for steel, 3/16 in (4.76 mm) IC, 35 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAC07500.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
IC Size (Metric)
4.76
Included Angle
35
Corner Radius (Decimal)
0.0080
Insert Style
VCMT
Insert Thickness (Fractional)
3/32
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
151505
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Rake
Positive
IC Size (Fractional)
3/16
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Grade
CA525
Chip Breaker Type
HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
ISO Designation
VCMT080202HQ
Workpiece Material
Steel
ANSI Designation
VCMT151505HQCA525
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
Coating Process
CVD
