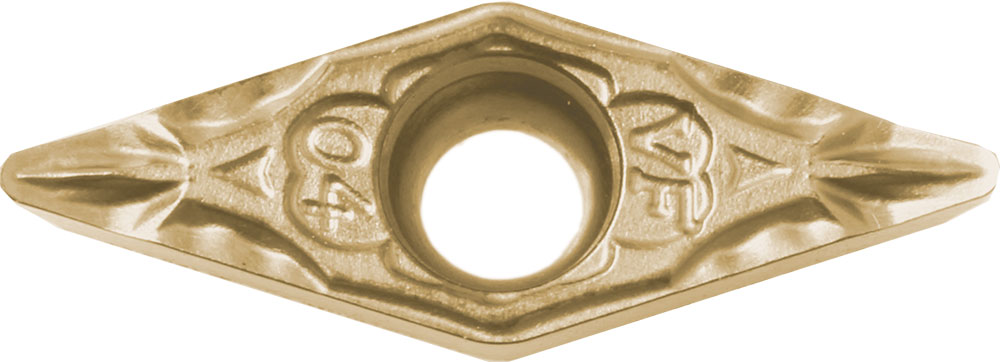

Kyocera Turning Insert VCMT15151VF PR1725: TLM00385

Kyocera Turning Insert VCMT15151VF PR1725, manufacturer part number TLM00385.

Specifications: IC Size: 3/16 in (4.76 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8863632; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 15151; Hand Direction: Neutral; Insert Style: VCMT; Insert Shape: 35 Degree Diamond; ANSI Designation: VCMT15151VFPR1725; Chip Breaker Type: VF; ISO Designation: VCMT080204VF; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: PR1725; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO PLUS. Series: ISOI. Unit of measure: Inch.
