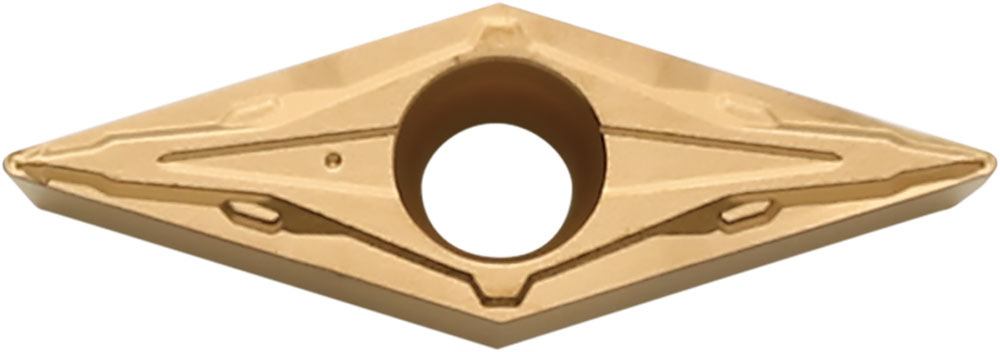

Kyocera Turning Insert VCMT331PP CA515: TAB07535
SKU: KYP-TAB07535
Kyocera Turning Insert VCMT331PP CA530, manufacturer part number TAD07535.
Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8844119; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Heavy Interruption; Insert Size: 331; Hand Direction: Neutral; Insert Style: VCMT; Insert Shape: 35 Degree Diamond; ANSI Designation: VCMT331PPCA530; Chip Breaker Type: PP; ISO Designation: VCMT160404PP; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: CA530; Workpiece Material: Steel; Coating Process: CVD.
Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
