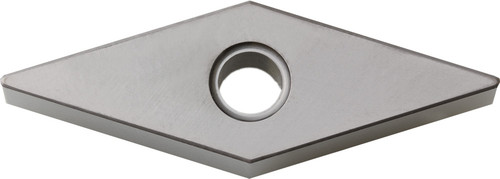

Kyocera VNGA 332 KW10 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE00788
$33.94
Kyocera VNGA 332 KW10 Grade Uncoated Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Roughing in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Corner Radius
1/32 Inch
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VNGA
Application
Copying, External Turning, Facing, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
332
Old Material Number
8805921
ANSI Part Number
VNGA332KW10
ISO Part Number
VNGA160408
Rake
Negative
Material Group / Grade
KW10
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Thickness (Metric)
4.76
Cutting Range
Roughing
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
Kyocera VNGA 332 KW10 Grade Uncoated Carbide, Indexable Turning Insert
$33.94
