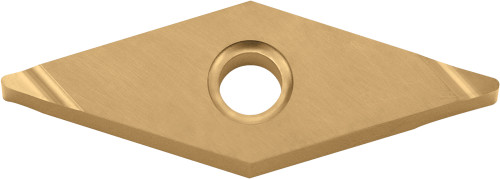

Kyocera VNGG 331RS PV730 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00581
$44.85
Kyocera VNGG 331RS PV730 Grade PVD Cermet, 0 Degree, Diamond, Negative Rake Angle, Right-Hand Turning Insert for Heavy Interruption and Sharp Cutting in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
TiAlN/TiN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VNGG331RSPV730
Insert Style
VNGG
Machining Operations
Copying, External Turning, Facing, Undercutting
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
331
Old Material Number
8866262
Insert Grade
PV730
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Coating Process
PVD
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous to Heavy Interruption
IC Size (Metric)
9.525
Chip Breaker Type
S
ISO Designation
VNGG160404R-S
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
Kyocera VNGG 331RS PV730 Grade PVD Cermet, Indexable Turning Insert
$44.85
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
