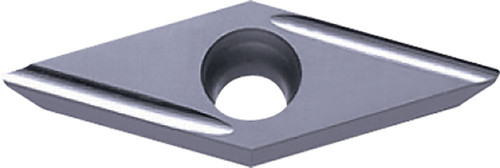

Kyocera Turning Insert VPET2205MFRUSF PR1225: TKE07957

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE07957
$39.31

Kyocera ISOI turning insert for stainless steel, 1/4 in (6.35 mm) IC, 35 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Carbide, MEGACOAT (PVD) coating. Manufacturer part number TKE07957.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT
IC Size (Metric)
6.35
Included Angle
35
Corner Radius (Decimal)
0.0080
Insert Style
VPET
Insert Thickness (Fractional)
1/8
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
2205
Secondary Workpiece Material
Steel
Insert Thickness (Metric)
3.18
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Grade
PR1225
Chip Breaker Type
USF
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
VPET110302MFR-USF
Workpiece Material
Stainless Steel
ANSI Designation
VPET2205MFRUSFPR1225
Pack quantity
10
Coating Process
PVD
