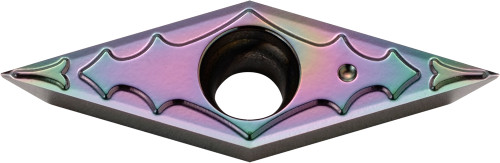

Kyocera VPGT 2205MPCF PDL010 Grade DLC Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLK08021
$43.24
Kyocera VPGT 2205MPCF PDL010 Grade DLC Carbide, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing in (N) Non-Ferrous Metals

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
DLC
Primary Workpiece Material
(N) Non-Ferrous Materials
Included Angle
35 degrees
Thickness
1/8 Inch
Style
VPGT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2205
Old Material Number
8860874
ANSI Part Number
VPGT2205MPCFPDL010
ISO Part Number
VPGT110302MP-CF
Rake
Positive
Material Group / Grade
PDL010
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
3.18
Chipbreaker
CF
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PDL010_PDL025_Inserts_for_Aluminum.pdf
Kyocera VPGT 2205MPCF PDL010 Grade DLC Carbide, Indexable Turning Insert
$43.24
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
