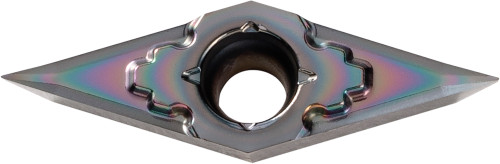

Kyocera Turning Insert VPGT2205MPCK PDL010: TLK08036

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLK08036
$43.24

Kyocera Turning Insert VPGT2205MPCK PDL010, manufacturer part number TLK08036.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8860878; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 2205; Hand Direction: Neutral; Insert Style: VPGT; Insert Shape: 35 Degree Diamond; ANSI Designation: VPGT2205MPCKPDL010; Chip Breaker Type: CK; ISO Designation: VPGT110302MP-CK; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: PDL010; Workpiece Material: Non-Ferrous.

Material: Carbide. Coating/Finish: DLC. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
DLC
IC Size (Metric)
6.35
Included Angle
35
Corner Radius (Decimal)
0.0080
Insert Style
VPGT
Insert Thickness (Fractional)
1/8
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
2205
Old Material Number
8860878
Insert Thickness (Metric)
3.18
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Grade
PDL010
Chip Breaker Type
CK
Cutting Range
Finishing
Usage Classification
Continuous
ISO Designation
VPGT110302MP-CK
Workpiece Material
Non-Ferrous
ANSI Designation
VPGT2205MPCKPDL010
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PDL010_PDL025_Inserts_for_Aluminum.pdf
