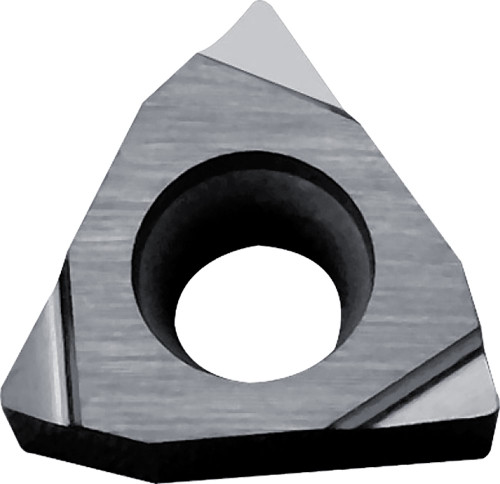

Kyocera WBET 15151MLF TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR08025
$32.40
Kyocera WBET 15151MLF TN620 Grade Uncoated Cermet, 5 Degree, Trigon, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
3/32 Inch
Style
WBET
Application
Boring, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
15151
Old Material Number
8843419
ANSI Part Number
WBET15151MLFTN620
ISO Part Number
WBET080204ML-F
Rake
Positive
Material Group / Grade
TN620
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Thickness (Metric)
2.38
Chipbreaker
F
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
4.76
Inscribed Circle
3/16 Inch
Pack quantity
10
