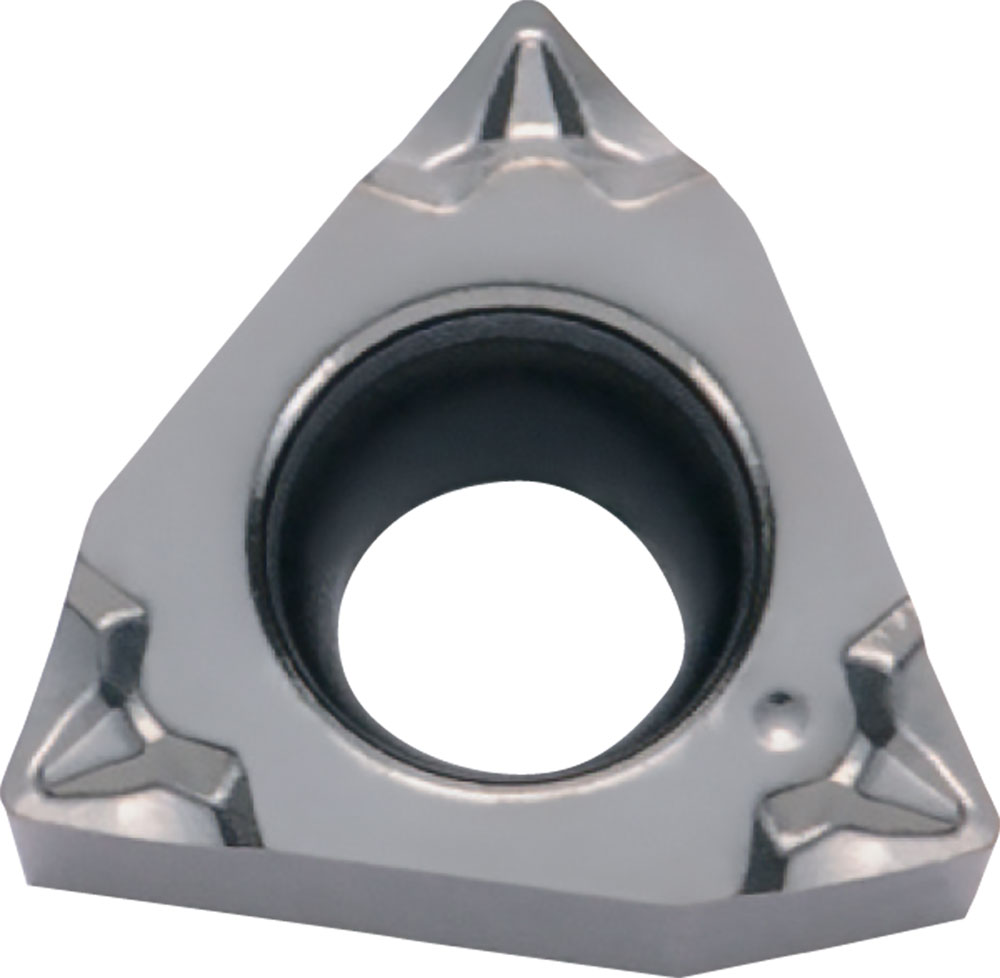

Kyocera Turning Insert WBGT12102MFPRPF PR1725: TLM00512

Kyocera Turning Insert WBGT12102MFPRPF PR1725, manufacturer part number TLM00512.

Specifications: IC Size: 5/32 in (3.97 mm); Insert Thickness: 1/16 in (1.59 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8863757; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 12102; Hand Direction: Right; Insert Style: WBGT; Insert Shape: 80 Degree Trigon; ANSI Designation: WBGT12102MFPRPFPR1725; Chip Breaker Type: PF; ISO Designation: WBGT060101MFPR-PF; Included Angle: 80 degrees; Machining Operations: Boring, Internal Facing; Insert Grade: PR1725; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO PLUS. Series: ISOI. Unit of measure: Inch.
