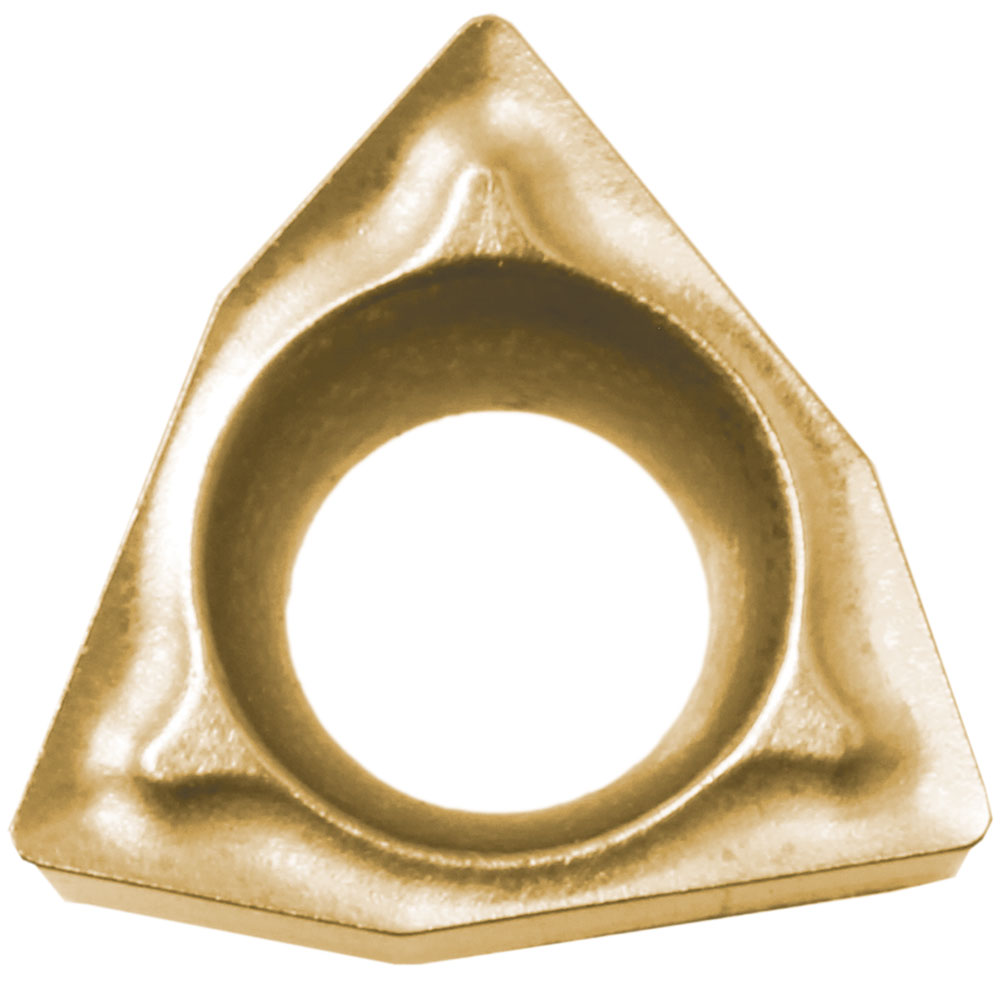

Kyocera Turning Insert WBMT1211LDP CCX: TMJ40121

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMJ40121
$32.13

Kyocera Turning Insert WBMT1211LDP CCX, manufacturer part number TMJ40121.

Specifications: IC Size: 5/32 in (3.97 mm); Insert Thickness: 1/16 in (1.59 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8864315; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 1211; Hand Direction: Left; Insert Style: WBMT; Insert Shape: 80 Degree Trigon; ANSI Designation: WBMT1211LDPCCX; Chip Breaker Type: DP; ISO Designation: WBMT060104L-DP; Included Angle: 80 degrees; Machining Operations: Boring, Internal Facing; Insert Grade: CCX; Workpiece Material: Steel, Cast Iron; Coating Process: CVD.

Material: Cermet. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Cermet
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/16
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
WBMT1211LDPCCX
Insert Style
WBMT
Insert Thickness (Metric)
1.59
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
1211
Old Material Number
8864315
Machining Operations
Boring, Internal Facing
Insert Grade
CCX
Rake
Positive
IC Size (Metric)
3.97
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Steel, Cast Iron
ISO Designation
WBMT060104L-DP
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Fractional)
5/32
Coating Process
CVD
Chip Breaker Type
DP
Pack quantity
10
