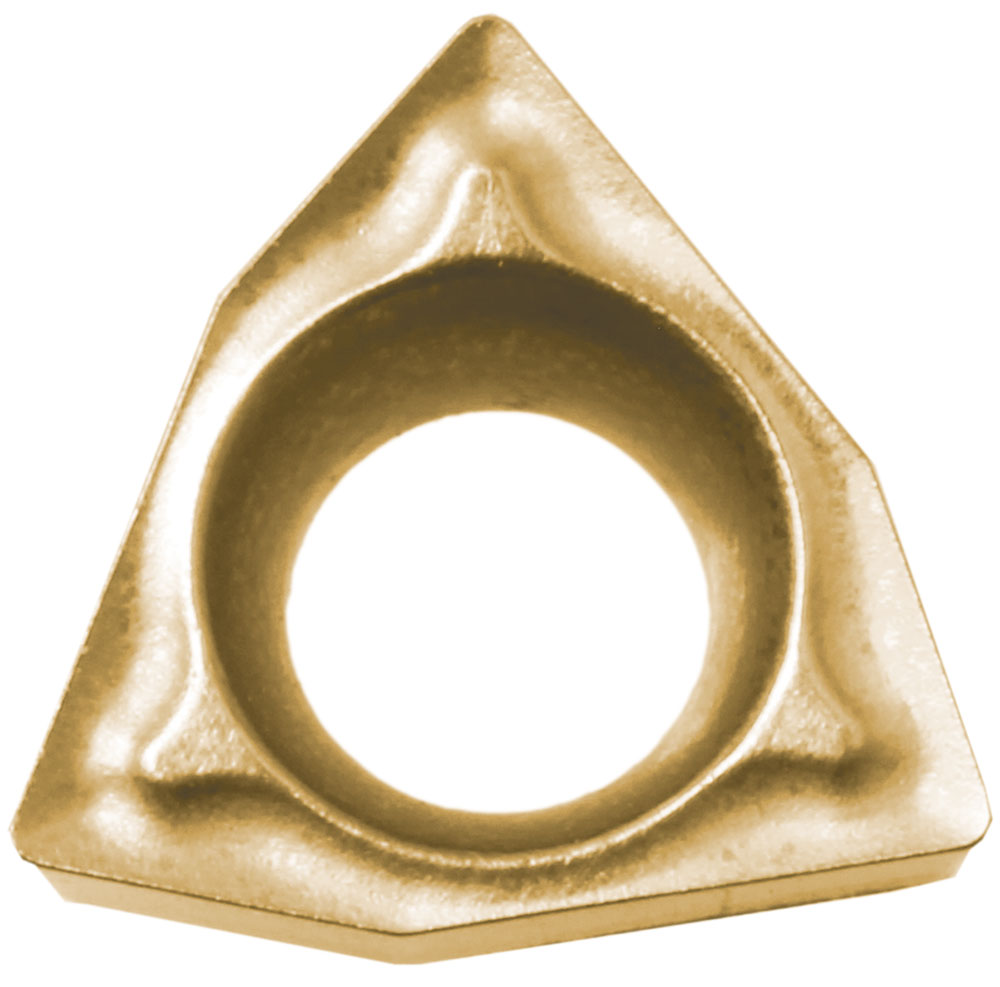

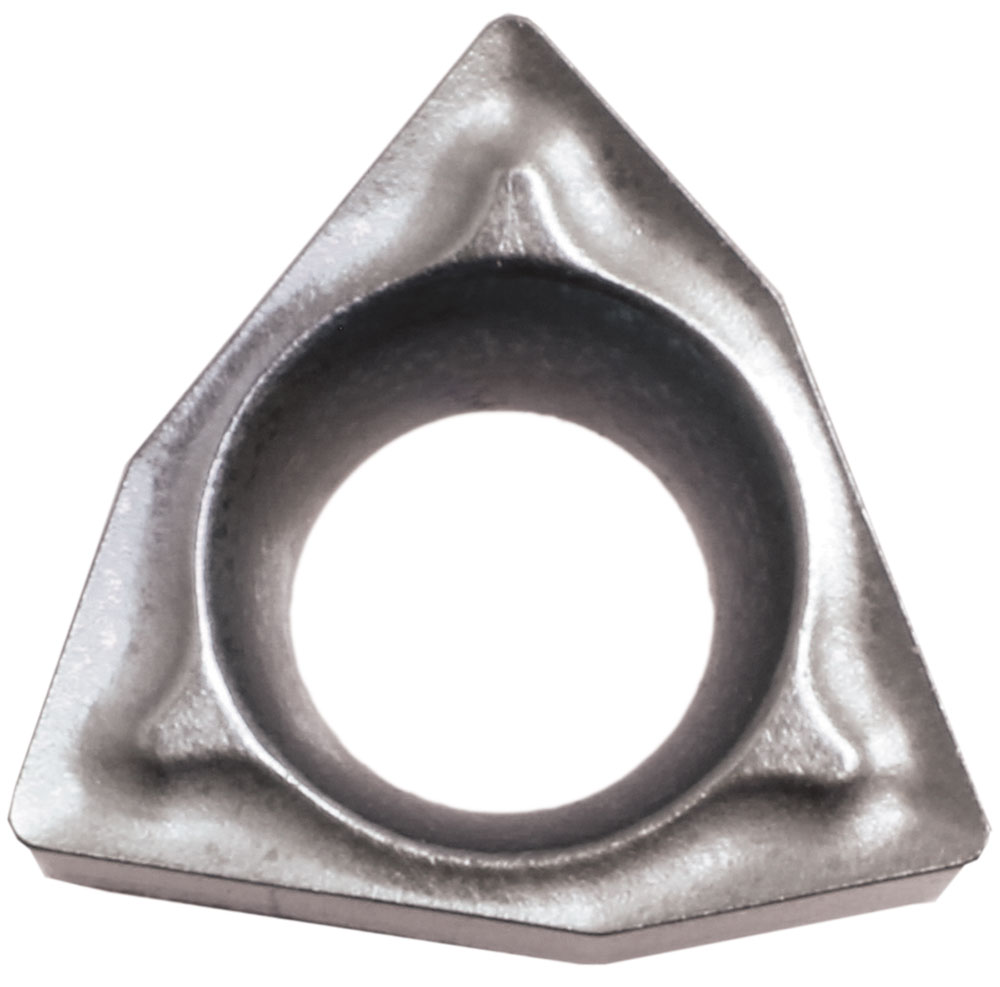

Kyocera WBMT 1211LDP PV710 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLF08502
$26.19
Kyocera WBMT 1211LDP PV710 Grade PVD Cermet, 5 Degree, Trigon, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
1/16 Inch
Style
WBMT
Application
Boring, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
1211
Old Material Number
8847755
ANSI Part Number
WBMT1211LDPPV710
ISO Part Number
WBMT060104L-DP
Rake
Positive
Material Group / Grade
PV710
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Thickness (Metric)
1.59
Chipbreaker
DP
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
3.97
Inscribed Circle
5/32 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera WBMT 1211LDP PV710 Grade PVD Cermet, Indexable Turning Insert
$26.19
