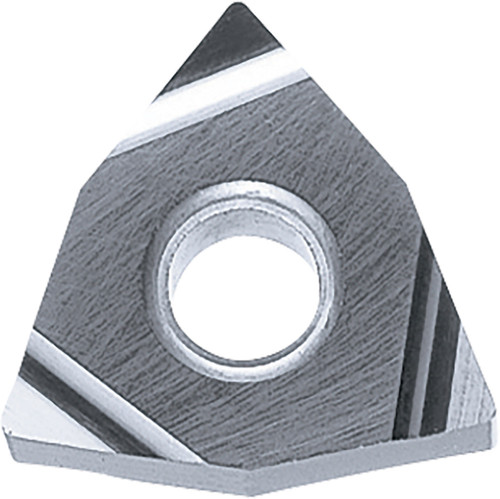

Kyocera Turning Insert WNGG3305RS TN60: TSJ04160
SKU: KYP-TSJ04160
Kyocera Turning Insert WNGG3305RS KW10, manufacturer part number TWE03650.
Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8803958; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 3305; Hand Direction: Right; Insert Style: WNGG; Insert Shape: 80 Degree Trigon; ANSI Designation: WNGG3305RSKW10; Chip Breaker Type: S; ISO Designation: WNGG060402R-S; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: KW10; Workpiece Material: Non-Ferrous, High-Temp Alloy, Cast Iron.
Material: Carbide. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.
