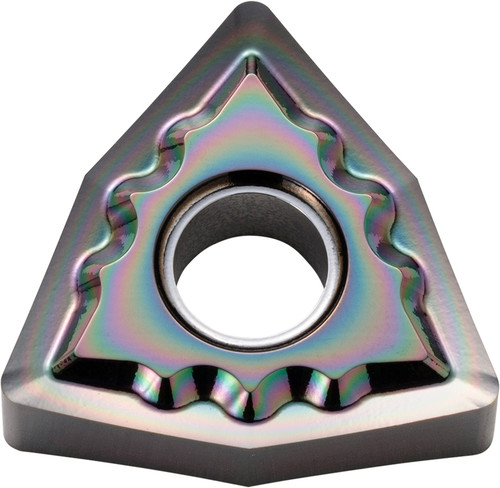

Kyocera Turning Insert WNGG431AH PDL010: TLK04417

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLK04417
$51.45

Kyocera ISOI turning insert for non-ferrous metals, 1/2 in (12.70 mm) IC, 80 degree trigon shape, negative rake, 6 cutting edges, medium-roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, DLC coating. Manufacturer part number TLK04417.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
DLC
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
WNGG431AHPDL010
Insert Style
WNGG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
431
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
PDL010
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
Workpiece Material
Non-Ferrous
ISO Designation
WNGG080404AH
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Chip Breaker Type
AH
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PDL010_PDL025_Inserts_for_Aluminum.pdf
