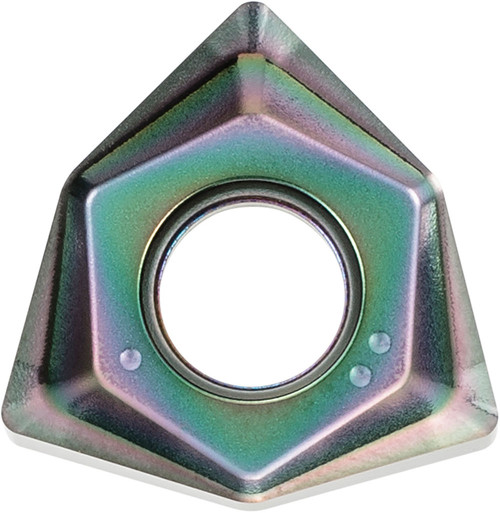

Kyocera WNGT 080608FNAM PDL025 Grade DLC Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLE09330
$62.23
Kyocera WNGT 080608FNAM PDL025 Grade DLC Carbide, Trigon, Negative Rake Angle, Neutral Milling Insert for Roughing in (N) Non-Ferrous Metals

Specifications

Series
MFWN
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
DLC
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PDL025
Inscribed Circle (Metric)
14.02
Thickness
6.65 mm
Style
WNGT
Application
Facing, Shouldering, Slotting
Thickness (Decimal)
0.26
Shape
80 Degree Trigon
Insert Holding Method
Screw
Old Material Number
8845994
ANSI Part Number
WNGT080608FNAMPDL025
ISO Part Number
WNGT080608FN-AM
Rake
Negative
Number of Cutting Edges
3
Insert Size
080608
Chipbreaker
FN-AM
Cutting Range
Roughing
Insert Included Angle (Degree)
80 degrees
Inscribed Circle (Decimal)
0.55
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
