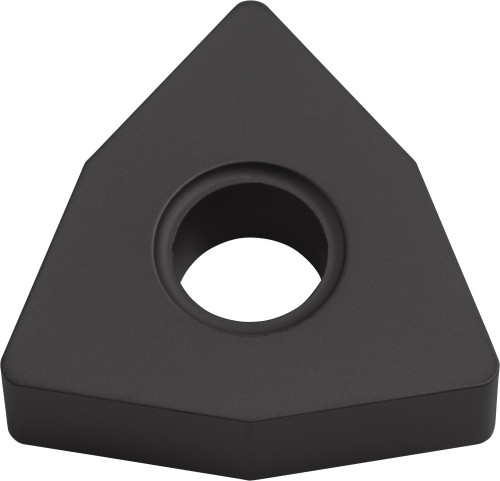

Kyocera Turning Insert WNMA432 CA320: TME08180
SKU: KYP-TME08180
Kyocera Turning Insert WNMA432 CA4515, order reference TJH08180.
Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8831446; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Roughing; Usage Classification: Heavy Interruption; Insert Size: 432; Hand Direction: Neutral; Insert Style: WNMA; Insert Shape: 80 Degree Trigon; ANSI Designation: WNMA432CA4515; ISO Designation: WNMA080408; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA4515; Workpiece Material: Cast Iron; Coating Process: CVD.
Material: Carbide. Series: ISOI. Unit of measure: Inch.
