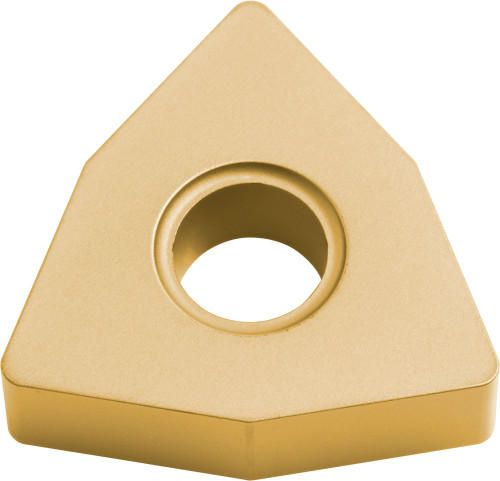

Kyocera Turning Insert WNMA432 CCX: TMJ00122

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMJ00122
$15.70

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, 80 degree trigon shape, negative rake, 6 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Cermet, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMJ00122.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
WNMA432CCX
Insert Style
WNMA
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
432
Secondary Workpiece Material
Cast Iron
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CCX
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Workpiece Material
Steel
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
ISO Designation
WNMA080408
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CCX_CVD_Cermet.pdf
